Resin Bond CBN Grinding Wheels - CBGW01
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Bond: | Resin |
|---|

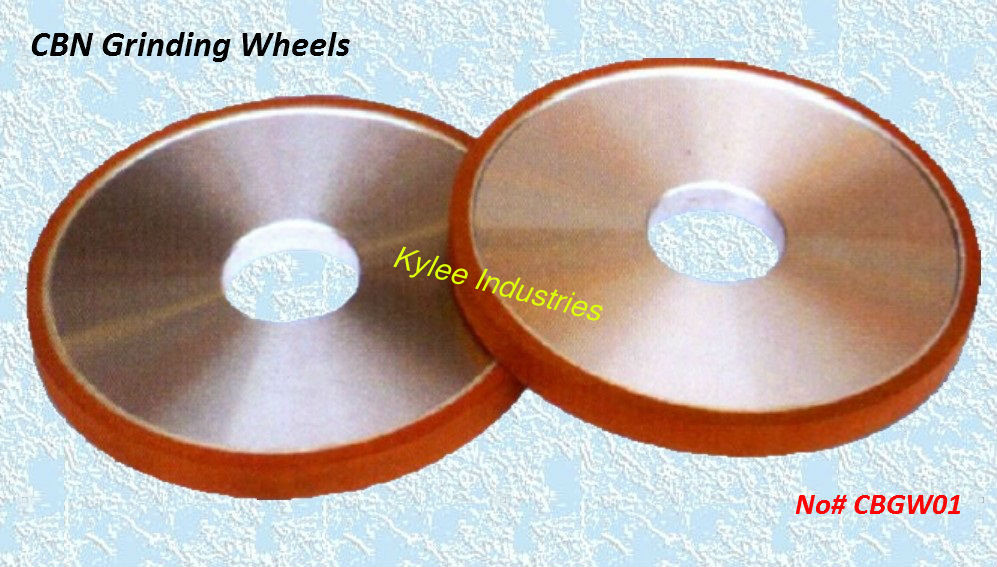

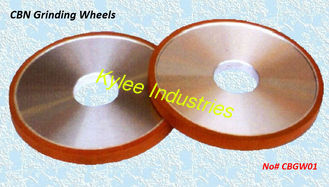

Resin Bond CBN Grinding Wheel - CBGW01
HTS: 6804221000
Grinding Materials: Cubic Boron Nitride
Core Materials: Aluminium
Application: Electric Grinder and etc
Function: It is designed for grinding the cones, cylinders, calibers and planes, processing the cylindrical surface workpieces. It can be also used for processing the carbide grooves and slots and fine grinding.
Typical models & specifications for reference:
| ITEM NUMBER | OUTER DIAMETER (D) | HOLE DIAMETER (H) | THICKNESS (T) | WIDTH (W) |
| CBGW010100 | 100mm | 20mm | 6 / 8 / 10 / 16 / 20mm | 4mm |
| CBGW010125 | 125mm | 32mm | 6 / 8 / 10 / 16 / 20mm | 4mm |
| CBGW010150 | 150mm | 32mm | 6 / 8 / 10 / 16 / 20mm | 4mm |
| CBGW010200 | 200mm | 32 / 75mm | 6 / 8 / 10 / 16 / 20mm | 4mm |
| CBGW010250 | 250mm | 32 / 75 / 127mm | 8 / 10 / 16 / 20 / 25mm | 5mm |
| CBGW010300 | 300mm | 75 / 127mm | 10 / 16 / 20 / 25mm | 5mm |
| CBGW010350 | 350mm | 127 / 203mm | 10 / 16 / 20 / 25mm | 5mm |
Note: the arbor size, thickness and width can be customized according to the buyers' requirements.
