Resin Bond CBN Grinding Wheels - CBGW04
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Bond: | Resin | Type: | Dish Grinding Wheels |
|---|

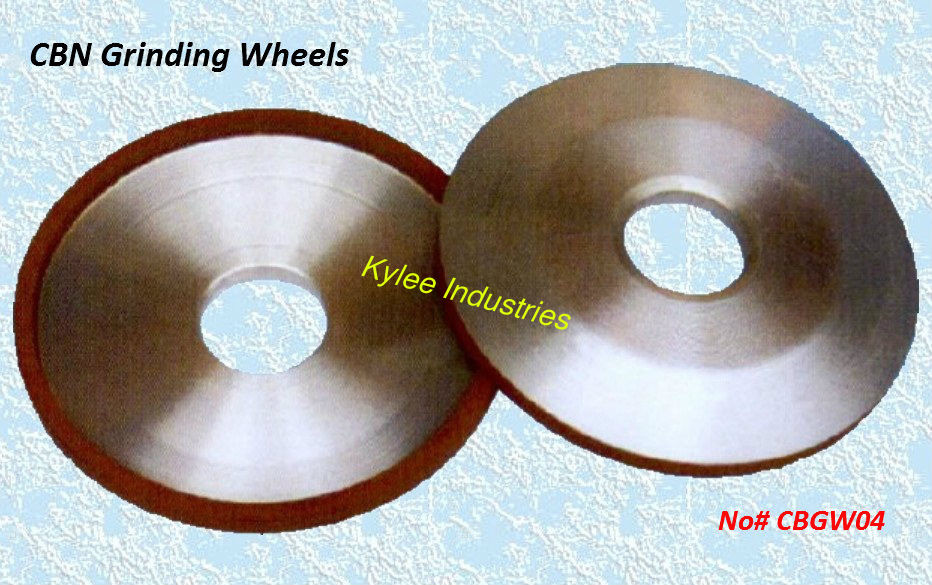

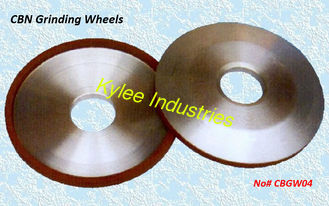

Resin Bond CBN Grinding Wheel - CBGW04
HTS: 6804221000
Grinding Materials: Cubic Boron Nitride
Core Materials: Aluminium
Application: Electric Grinder and etc
Function: It is designed for sharpening and fine-grinding the rear-surfaces of the cutting blades.
Typical models & specifications for reference:
| ITEM NUMBER | OUTER DIAMETER (D) | HOLE DIAMETER (H) | HEIGHT(G) | THICKNESS (T) | WIDTH (W) |
| CBGW040050 | 50mm | 10mm | 10mm | 2mm | 2mm |
| CBGW040075 | 75mm | 10mm | 13mm | 3mm | 3mm |
| CBGW040080 | 80mm | 20mm | 13mm | 3mm | 3mm |
| CBGW040100 | 100mm | 20mm | 13mm | 3mm | 3mm |
| CBGW040125 | 125mm | 32mm | 13mm | 3mm | 5mm |
| CBGW040150 | 150mm | 32mm | 16mm | 3mm | 5mm |
Note: the arbor size, thickness, height and width can be customized according to the buyers' requirements.
