Resin Bond CBN Grinding Wheels - CBGW02
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Bond: | Resin | Type: | Bowl Grinding Wheels |
|---|

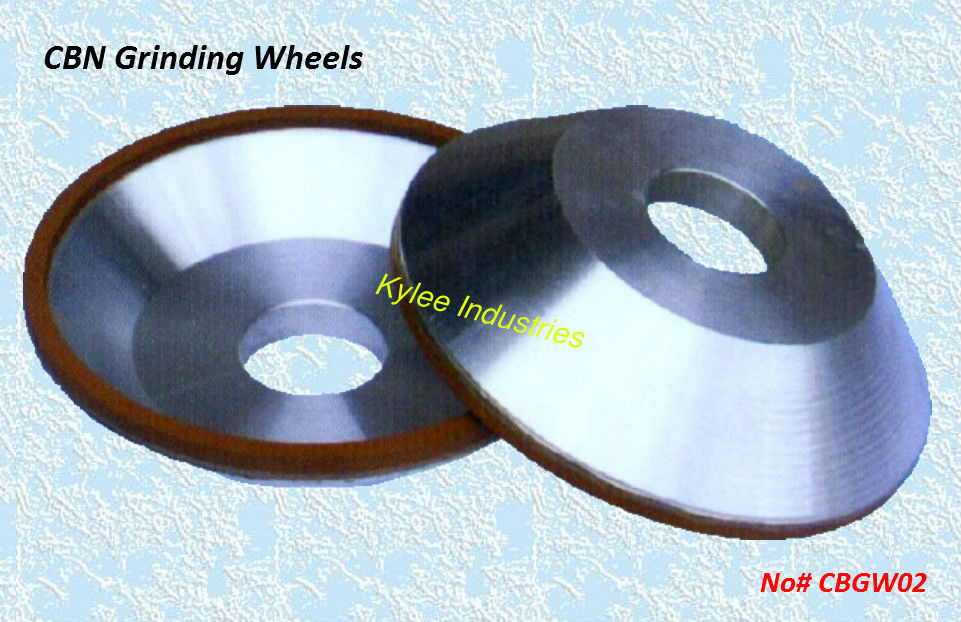

Resin Bond CBN Grinding Wheel - CBGW02
HTS: 6804221000
Grinding Materials: Cubic Boron Nitride
Core Materials: Aluminium
Application: Electric Grinder and etc
Function: It is designed for sharpening and fine-grinding the carbide tools, such as the front teeth & back teeth of the cutting blades, core drills and etc.; it can also be used for processing the surfaces of the flat-grinding machine parts, semiconductors, ceramics, precious stones, quartz and other hard brittle materials.
Typical models & specifications for reference:
| ITEM NUMBER | OUTER DIAMETER (D) | HOLE DIAMETER (H) | HEIGHT(G) | THICKNESS (T) | WIDTH (W) |
| CBGW020050 | 50mm | 20mm | 20mm | 3mm | 2mm |
| CBGW020075 | 75mm | 25mm | 25mm | 3mm | 3 / 5mm |
| CBGW020080 | 80mm | 20mm | 25mm | 3mm | 3 / 5 / 10mm |
| CBGW020100 | 100mm | 32mm | 30mm | 3mm | 5 / 10 / 15mm |
| CBGW020125 | 125mm | 32mm | 32mm | 3mm | 5 / 10 / 15mm |
| CBGW020150 | 150mm | 32mm | 35mm | 3mm | 5 / 10 / 15mm |
Note: the arbor size, thickness, height and width can be customized according to the buyers' requirements.
