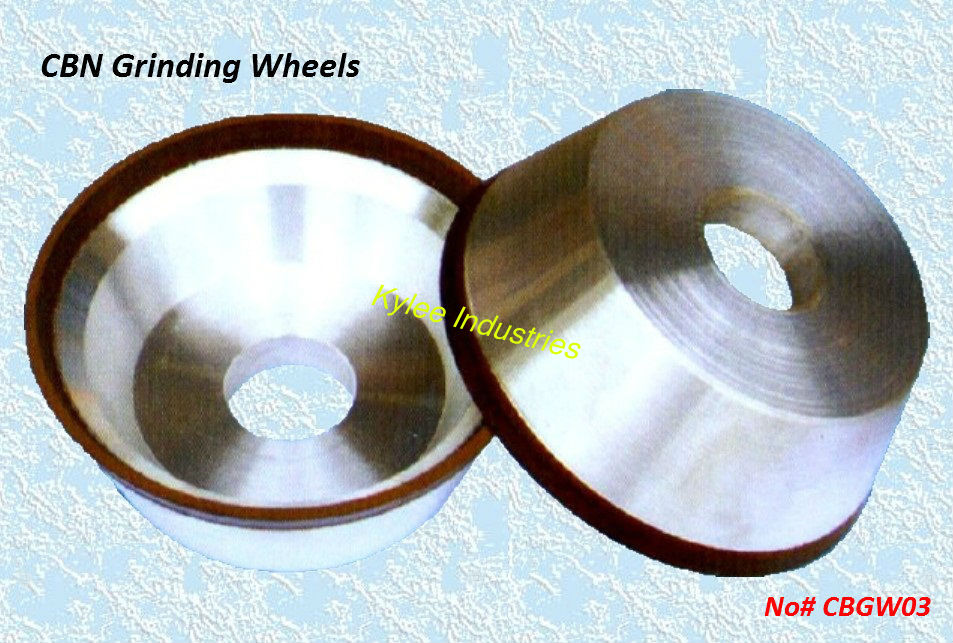

Resin Bond CBN Grinding Wheels - CBGW03

China Resin Bond CBN Grinding Wheels - CBGW03 supplier

Large Image :  Resin Bond CBN Grinding Wheels - CBGW03

Product Details:

Place of Origin: China
Brand Name: KI
Certification: ISO9001
Model Number: CBGW03

Payment & Shipping Terms:

Minimum Order Quantity: 5 ~ 20pieces
Price: Call for price
Packaging Details: Carton or Box packaging, OEM accept
Delivery Time: 1 ~ 4 weeks
Payment Terms: WesternUnion, Paypal, TT, L/C
Supply Ability: 500pcs per week
Contact Now
Detailed Product Description
Bond: Resin Type: Bowl Grinding Wheels

Resin Bond CBN Grinding Wheel - CBGW03



HTS: 6804221000

Grinding Materials: Cubic Boron Nitride

Core Materials: Aluminium

ApplicationElectric Grinder and etc

Function: It is designed for sharpening and fine-grinding the rear-surfaces of the cutting blades.

Typical models & specifications for reference:

ITEM NUMBER OUTER DIAMETER (D)       HOLE DIAMETER (H)    HEIGHT(G) THICKNESS (T)         WIDTH (W)
CBGW030050 50mm 10mm 25mm 5mm                     2mm
CBGW030075 75mm 10mm 30mm 5mm 3mm
CBGW030080 80mm 20mm 30mm 5mm 3mm
CBGW030100 100mm 20mm 40mm 7mm 3mm
CBGW030125 125mm 32mm 45mm 7mm 3mm
CBGW030150 150mm 32mm 45mm 7mm 5mm

                             Resin Bond CBN Grinding Wheels - CBGW03

Note: the arbor size, thickness, height and width can be customized  according to the buyers' requirements.
