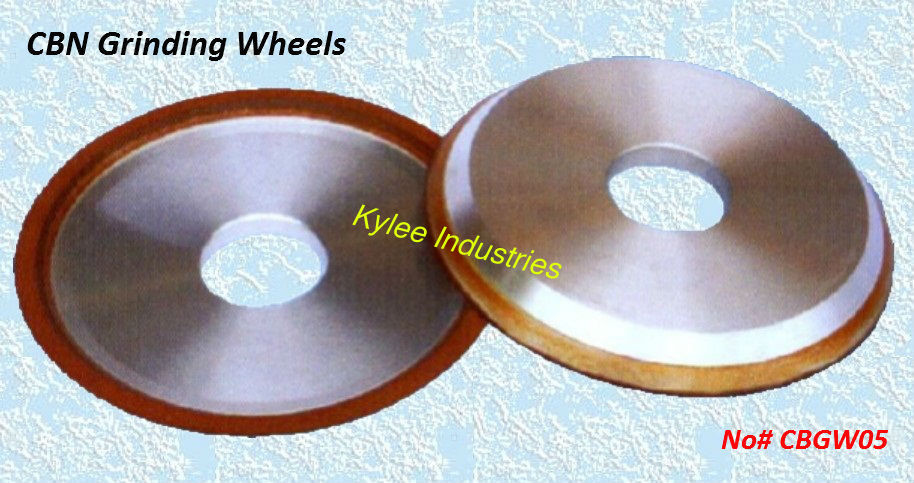

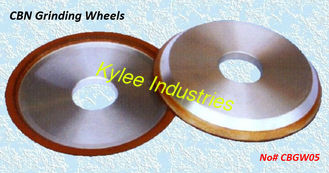

Resin Bond CBN Grinding Wheels - CBGW05
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Bond: | Resin | Type: | Dish Grinding Wheels |
|---|
Resin Bond CBN Grinding Wheel - CBGW05
HTS: 6804221000
Grinding Materials: Cubic Boron Nitride
Core Materials: Aluminium
Application: Electric Grinder and etc
Function: It is designed for sharpening and fine-grinding the reamers, cutting tools, alloy saw blade's rake angle, wire-drawing abrasive and other carbide tools.
Typical models & specifications for reference:
| ITEM NUMBER | OUTER DIAMETER (D) | HOLE DIAMETER (H) | HEIGHT(G) | THICKNESS (T) | WIDTH (W) |
| CBGW050075 | 75mm | 10mm | 12mm | 3mm | 3 / 5mm |
| CBGW050080 | 80mm | 20mm | 12mm | 3mm | 3 / 5mm |
| CBGW050100 | 100mm | 20mm | 13mm | 3mm | 3 / 5mm |
| CBGW050125 | 125mm | 32mm | 13mm | 3mm | 5 / 10mm |
| CBGW050150 | 150mm | 32mm | 16mm | 3mm | 5 / 10mm |
| CBGW050200 | 200mm | 32mm | 20mm | 3mm | 10 / 15mm |
Note: the arbor size, thickness, height and width can be customized according to the buyers' requirements.
