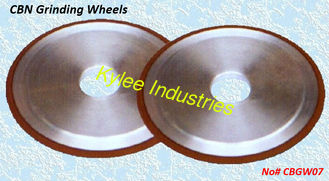

Resin Bond CBN Grinding Wheels - CBGW07
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Bond: | Resin | Type: | Double-side Grinding Wheels |
|---|
Resin Bond CBN Grinding Wheel - CBGW07
HTS: 6804221000
Grinding Materials: Cubic Boron Nitride
Core Materials: Aluminium
Application: Electric Grinder and etc
Function: It is designed for processing industrial & decorative glass, crystal, external tapping, and etc.
Typical models & specifications for reference:
| ITEM NUMBER | OUTER DIAMETER (D) | HOLE DIAMETER (H) | HEIGHT(G) | THICKNESS (T) | ANGLE(V) | WIDTH (W) |
| CBGW070100 | 100mm | 20mm | 6mm | 3mm | 40 / 60 | 5mm |
| CBGW070125 | 125mm | 32mm | 6mm | 3mm | 40 / 60 | 8mm |
| CBGW070150 | 150mm | 32mm | 8mm | 3mm | 40 / 60 | 8mm |
| CBGW070200 | 200mm | 32mm | 10mm | 5mm | 40 / 60 | 8mm |
Note: the arbor size, thickness and width can be customized according to the buyers' requirements.
