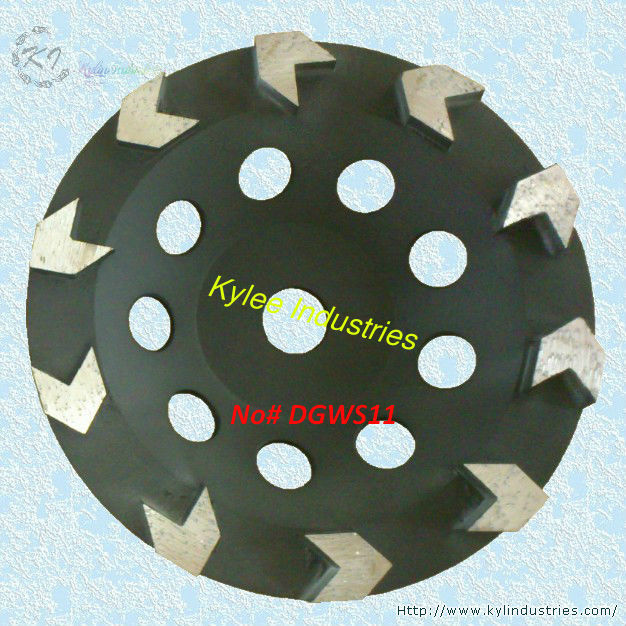

Arrow Turbo Diamond Cup Grinding Wheel - DGWS11
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Arrow Turbo Diamond Cup Grinding Wheel - DGWS11
HTS: 6804221000
Core Materials: Steel
Processing methods: Sintered / Silver Brazed
Application: Angle Grinder / Electric Grinder and etc
Function: It is designed for grinding and polishing granite,marble,concrete and concrete products, masonry materials and all types of natural stone.
Typical models & specifications for reference:
| ITEM NUMBER | OUTER DIAMETER(D) | SEGMENT NUMBER | BORE HOLE | SEGMENT THICKNESS (mm) | |
| INCHES | METRIC(mm) | ||||
| DGWS110100 | 4 | 100 | 8 | 7/8" | 5 |
| DGWS110115 | 4.5 | 115 | 8 | 7/8" | 5 |
| DGWS110125 | 5 | 125 | 8 | 7/8" | 5 |
| DGWS110180 | 7 | 180 | 10 | 7/8" | 5 |
Note: the arbor size, segment height, thickness can be customized according to the buyers' requirements.
