Continuous Rim Diamond Cup Grinding Wheel for Granite and Marble - DGWS01
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

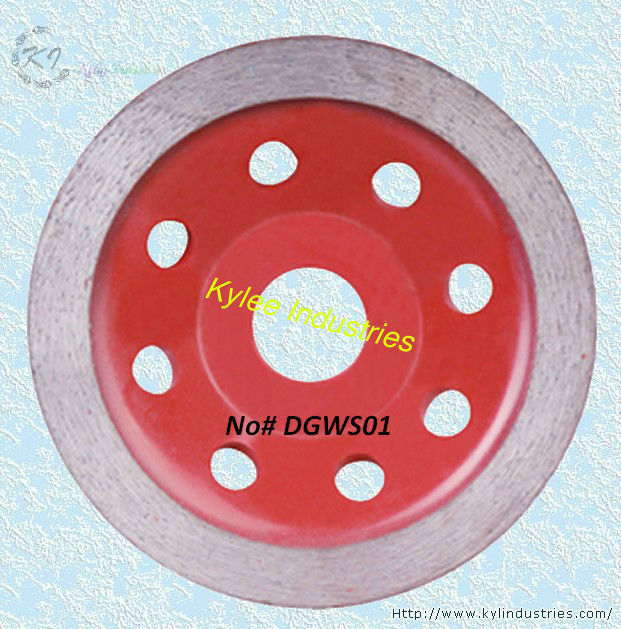

Continuous Rim Diamond Cup Grinding Wheel
for Granite, Marble, Concrete and Bricks
HTS: 6804221000
Core Materials: High quality steel
Processing methods: Sintered / Silver Brazed
Application: Angle Grinder / Electric Grinder and etc
Function: It is designed for grinding and polishing granite, marble, concrete
and concrete products, masonry materials and all types of natural stone..
Typical models & specifications for reference:
| ITEM NUMBER | OUTER DIAMETER(D) | BORE HOLE (mm) | SEGMENT THICKNESS (mm) | SEGMENT HEIGHT (mm) | |
| INCHES | METRIC(mm) | ||||
| DGWS010100 | 4 | 100 | 20 / 22.23 | 5 | 7/10/20 |
| DGWS010105 | 4.125 | 105 | 22.23 | 5 | 7/10/20 |
| DGWS010115 | 4.5 | 115 | 22.23 | 5 | 7/10/20 |
| DGWS010125 | 5 | 125 | 22.23 | 5 | 7/10/20 |
| DGWS010150 | 6 | 150 | 22.23 | 5 | 7/10/20 |
| DGWS010180 | 7 | 180 | 22.23 | 5 | 7/10/20 |
Note: the arbor size, segment height, thickness can be customized according to the buyers' requirements.
