Thickened Turbo Diamond Cup Grinding Wheel for Concrete - DGWS06
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

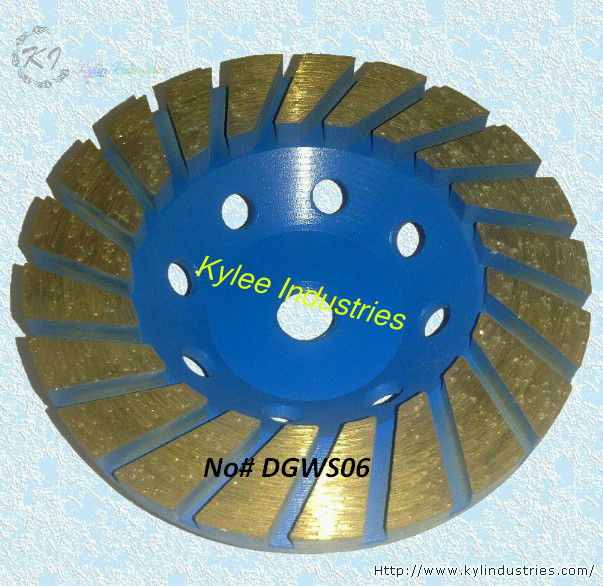

Thickened Turbo Diamond Cup Grinding Wheel
for Grinding and Polishing Concrete, Granite, Marble and etc
HTS: 6804221000
Core Materials: high quality steel
Processing methods: Sintered / Silver Brazed
Application: Angle Grinder / Electric Grinder and etc
Function: It is designed for grinding and polishing granite,marble,concrete and concrete products,masonry materials and all types of natural stone with maximum stock removal and free cutting action for wet or dyr applications.Especially suitable for edge leveling,grinding polishing or repair jobd where a smooth finish is required.
Typical models & specifications for reference:
| ITEM NUMBER | OUTER DIAMETER | BORE HOLE (mm) | SEGMENT THICKNESS (mm) |
SEGMENT HEIGHT (mm) |
SEGMENT QTY | |
| INCHES | METRIC(mm) | |||||
| DGWS060100 | 4 | 100 | 20 / 22.23 | 5 | 20 | 14 |
| DGWS060115 | 4.5 | 115 | 22.23 | 5 | 20 | 16 |
| DGWS060125 | 5 | 125 | 22.23 | 5 | 20 | 18 |
| DGWS060150 | 6 | 150 | 22.23 | 5 | 20 | 20 |
| DGWS060180 | 7 | 180 | 22.23 | 5 | 20 | 24 |
| DGWS060230 | 9 | 230 | 22.23 | 5 | 20 | 36 |
Note: the arbor size, segment height, thickness can be customized according to the buyers' requirements.
