Single Row Diamond Cup Grinding Wheel for Concrete and Granite - DGWS03
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

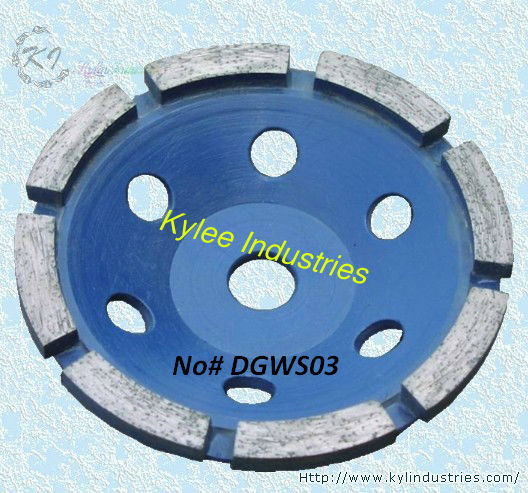

Single Row Diamond Cup Grinding Wheel
for Grinding & Polishing Concrete, Granite, Marble and other natural stones
HTS: 6804221000
Core Materials: high quality steel
Processing methods: Sintered / Silver Brazed
Application: Angle Grinder / Electric Grinder and etc
Function: It is designed for grinding and polishing granite, marble, concrete
and concrete products, masonry materials and all types of natural stone..
Typical models & specifications for reference:
| ITEM NUMBER | OUTER DIAMETER | SEGMENT NUMBER | BORE HOLE (mm) | SEGMENT SIZE (mm) | |
| INCHES | METRIC(mm) | ||||
| DGWS030100 | 4 | 100 | 7/8 | 20 / 22.23 | 30*5*8 |
| DGWS030115 | 4.5 | 115 | 8 | 22.23 | 30*5*8 |
| DGWS030125 | 5 | 125 | 9 | 22.23 | 31*5*8 |
| DGWS030125 | 6 | 150 | 10 | 22.23 | 35*5*8 |
| DGWS030180 | 7 | 180 | 12 | 22.23 | 35*5*8 |
| DGWS030230 | 9 | 230 | 16 | 22.23 | 35*5*8 |
Note: the arbor size, segment height, thickness can be customized according to the buyers' requirements.
