Product Details:
Payment & Shipping Terms:
|
HTS: 6804221000
Core Materials: high quality steel
Processing methods: Sintered / Silver Brazed
Application: Angle Grinder / Electric Grinder and etc

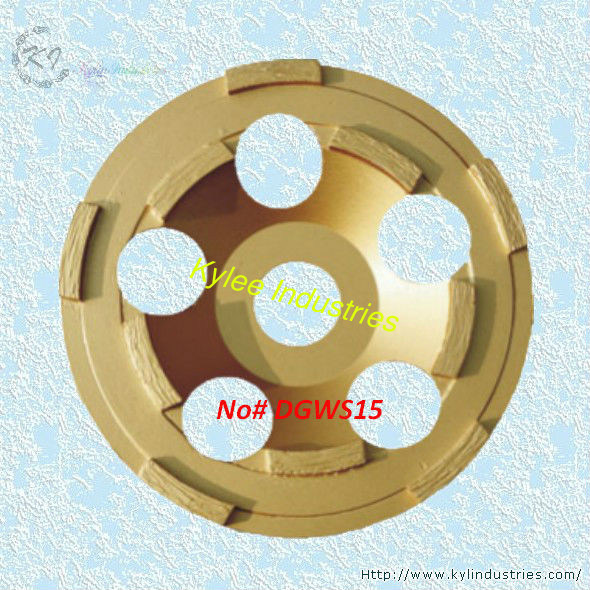

Function: It is designed for grinding and polishing granite,marble,concrete and concrete products, masonry materials and all types of natural stone.
Typical models & specifications for reference:
ITEM NUMBER | OUTER DIAMETER(D) | BORE HOLE (mm) | SEGMENT SIZE (mm) | SEGMENT QTY | |
INCHES | METRIC(mm) | ||||
DGWS150100 | 4 | 100 | 22.23 | 30*5*7.2 | 12 |
DGWS150115 | 4.5 | 115 | 22.23 | 30*5*7.2 | 18 |
DGWS150125 | 5 | 125 | 22.23 | 30*5*7.2 | 20 |
DGWS150150 | 6 | 150 | 22.23 | 30*5*7.2 | 24 |
DGWS150180 | 7 | 180 | 22.23 | 30*5*7.2 | 26 |
DGWS150230 | 9 | 230 | 22.23 | 32*5*7.2 | 36 |
Note: the arbor size, segment height, thickness can be customized according to the buyers' requirements.
