Laser Welded Diamond Saw Blade for Cutting Wall - DLWB05
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Blade Diameter: | 12inch ~ 18inch | Dimensions: | 300mm ~ 450mm |
|---|---|---|---|
| Power Source: | Electricity | Saw Type: | Circular Saw |
| Application: | Wall Saw |

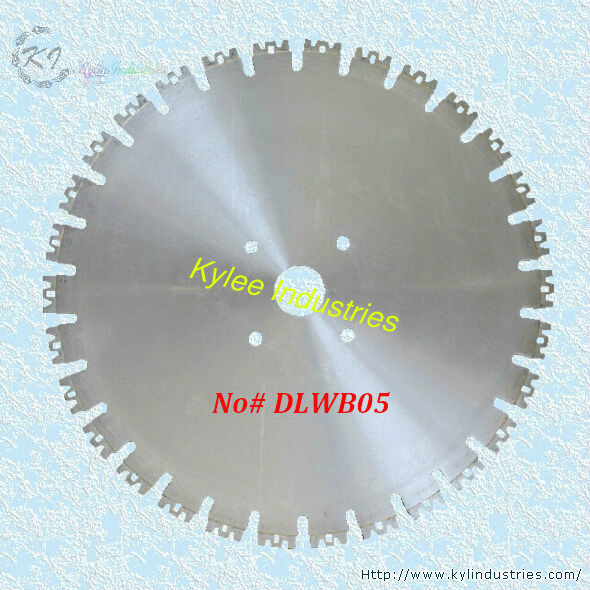

Laser Welded Diamond Saw Blade for Cutting Wall
HTS: 8202390000
Core Materials: steel
Category: Diamond saw blade
Sintered processing methods: Laser Welded
Features:
1. It is specially designed for cutting walls, reinforced concrete;
2. It has the advantages such as: sharp cutting, good wear-resistant coefficient;
3. It can be applied to a variety of large cutting machines;
4, Diamond segments with diamond particles and metal powders would be connected with the core materials through Laser Welded process, which would improve the strength of the segments and bring a solid & stable segments, to avoid some accidental injuries.
Typical models & specifications for reference:
| ITEM NUMBER | OUTER DIAMETER(D) | BORE HOLE (mm) | SEGMENT SIZE (mm) | SEGMENT QUANTITY | |
| INCHES | METRIC(mm) | ||||
| DLWB050300 | 12 | 300 | 25.4/50 | 3.0×8/10/12/14mm | 20 / 21 |
| DLWB050350 | 14 | 350 | 25.4/50 | 3.2×8/10/12/14mm | 24 |
| DLWB050400 | 16 | 400 | 50 | 3.4×8/10/12/14mm | 28 |
| DLWB050450 | 18 | 450 | 50 | 3.6×8/10/12/14mm | 32 |
Note: the arbor size, segment height, thickness can be customized according to the buyers' requirements.
