Product Details:
Payment & Shipping Terms:
|
Blade Diameter: | 12inch ~ 24inch | Dimensions: | 300mm ~ 600mm |
---|---|---|---|
Power Source: | Electricity | Saw Type: | Circular Saw |
Application: | Stone Saw |

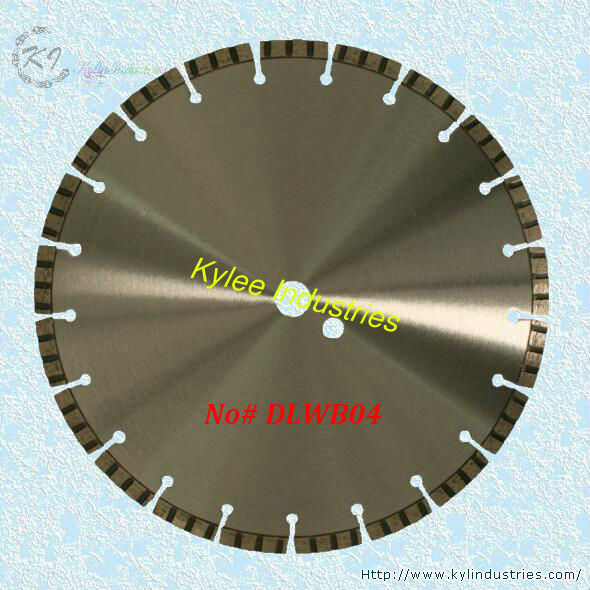

for Cutting Concrete and Granite
HTS: 8202390000
Core Materials: steel
Category: Segmented saw blade
Sintered processing methods: Laser Welded
Features:
1. It can be used for cutting concrete, reinforced concrete, granite and other high abrasive material;
2. It has the advantages such as: sharp cutting, good wear-resistant coefficient;
3. It can be applied to a variety of large cutting machines;
4, Diamond segments with diamond particles and metal powders would be connected with the core materials through Laser Welded process, which would improve the strength of the segments and bring a solid & stable segments, to avoid some accidental injuries.
Typical models & specifications for reference:
ITEM NUMBER | OUTER DIAMETER(D) | BORE HOLE (mm) | SEGMENT QUANTITY | SEGMENT TALL (mm) | |
INCHES | METRIC(mm) | ||||
DLWB040300 | 12 | 300 | 25.4/50 | 21 | 8/10/12 |
DLWB040350 | 14 | 350 | 25.4/50 | 24 | 8/10/12 |
DLWB040400 | 16 | 400 | 25.4/50 | 28 | 8/10/12 |
DLWB040450 | 18 | 450 | 25.4/50 | 32 | 8/10/12 |
DLWB040500 | 20 | 500 | 25.4/50 | 36 | 8/10/12 |
DLWB040550 | 22 | 550 | 25.4/50 | 38 | 8/10/12 |
DLWB040600 | 24 | 600 | 25.4/50 | 42 | 8/10/12 |
Note: the arbor size, segment height, thickness can be customized according to the buyers' requirements.
