Diamond Electroplated Grinding Wheels for Lapidary and Glass

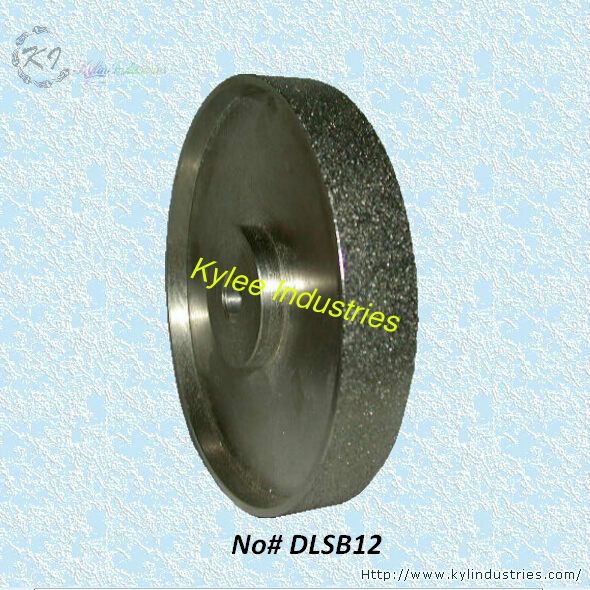

Diamond Electroplated Grinding Wheels - DLSB12

HTS: 6804221000

Core materials: Steel  /  Aluminum

Diamond grits can be customized to 46# ~ 1200#

Application: it is specially designed for lapidary, glass, ceramics, semiconductors and etc.

It is made up of imported raw materials and electroplated with high-quality diamond particles.

Product features: Uniform electroplated with diamond particles, sharp, wear-resistance, stable

Production techniques: it adopts an electrodepositing method that it can make the nickel-cobalt alloy deposited on the metal core and fix the diamond particles accordingly.

Our product advantages: more efficiency processing, good thermal performance and higher hardness

Precautious: after installing such grinding wheels, please let the machine idle 30s ~ 60s; you can start the processing when you check the machine is fine.

According to the shape, the grinding wheels can be divided into parallel grinding wheels, cylindrical grinding wheels, cup wheels, bowl wheels, dish wheels, edging wheels, abrasive wheels and etc

Typical Specification: Dia 198mm × arbor 25.4mm × width 38mm x 60grits;

It can be customized according specific application and customer's requirements.

Remark:

The advantages of diamond electroplated grinding wheels

1. non-maintenance, easy to use

2. monolayer structure determines it can reach very high operating speed; as far as I know, the max operating speed of electroplated grinding wheels is 250~300m/s

3. although it is monolayer structure, it still obtains enough lifespan

4. for high-accuracy roller wheels, electroplated wheels is the unique selection

The disadvantages of diamond electroplated grinding wheels

There is no firmly chemical metallurgical bonding among coating metal, core materials and abrasives. The abrasives is only mechanically entrapped in coating metal, therefore the gripping force is few. When it is operating at high speed and heavy load, the diamond particles are easy to fall off and it will bring the failure to the whole grinding wheels; to strengthen the gripping force, we shall increase the grinding thickness, but the chip space is reduced, which would make the grinding wheels blocked, and it will also lead to poor cooling effect and burn the workpiece.
