Small Diamond Lapidary Saw Blades - DLSB04
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description

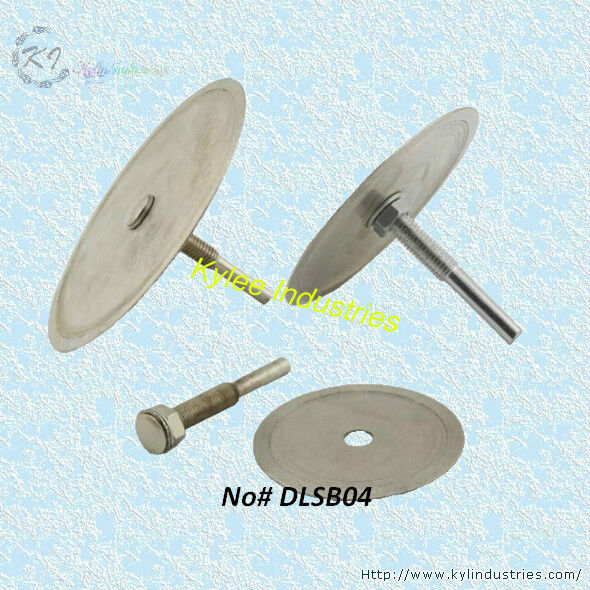

Small Diamond Lapidary Saw Blades
for Cutting Agate, Jade, Crystal and Glass
HS code: 8202390000
Type: Continuous Rim Blades
Core Materials: Steel
Processing methods: electroplating / sintered production technology
Application: it is mainly used for cutting stones, such as: Jade, Agate, Crystal, and other Gemstone.
* Existed specifications for Sintered Blades (40~110mm):
| OUTER DIAMETER (mm) |
ARBOR SIZE (mm) |
CORE (mm) |
KERF (mm) |
SEGMENT WIDTH (mm) |
| 40mm | 6 | 1.0 | 1.0 | 5.0 |
| 60mm | 8 | 0.8 | 1.0 | 5.0 |
| 80mm | 8 | 0.85 | 1.0 | 5.0 |
| 110mm | 8 | 1.0 | 1.2 | 5.5 |
| 110mm | 20 | 1.0 | 1.10 | 5.5 |
* Existed specifications for Electroplated Blades (16~60mm):
Diameter: 16mm / 18mm / 20mm / 25mm / 30mm / 40mm / 50mm / 60mm.
Bore diameter: 3mm Holding Rod diameter: 3mm
