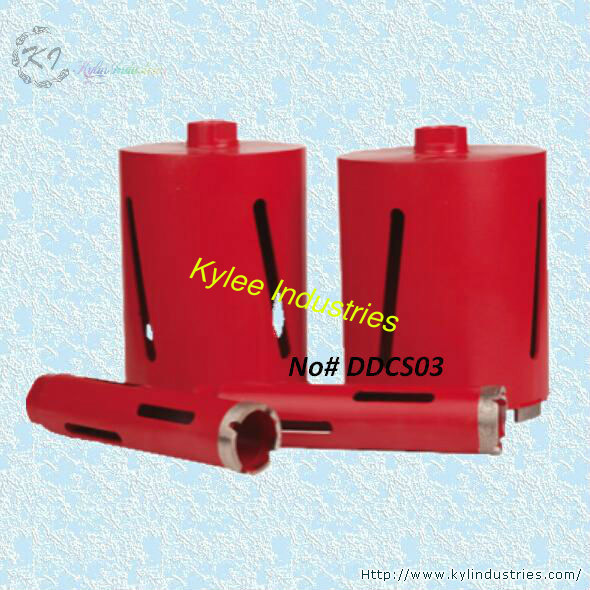

Welded Concrete Core Drill Bit - DDCS03
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Application: | Drilling Holes On Masonry, Brick, Concrete And Granite | Max. Drilling Diameter: | 350mm |
|---|---|---|---|
| Drill Type: | Core Drill |
Welded Concrete Core Drill Bit - DDCS03
HTS: 8207501000
Category: Core Drill Bit
Processing methods: welding process
Application: It can be used for drilling holes on masonry, brick, concrete and etc
Features:
1) the segments are sharp, with fast drilling speed and high efficiency;
2) with good abrasion resistance and long service life,
it can drill over 20 meters on reinforced concrete;
3) the drills' pipe is made up of 45# steel, and it won't be easily deformed;
4) we used to adopt welding process, to keep a solid connection.
Existed models & specifications for reference:
| Item No. | Outer Diameter | Bore Hole | Segment Height | Length | |
| DDCS03025 | 1" | 25.4mm | 5/8-11 | 8mm / 10mm | 350mm |
| DDCS03028 | 1-1/8" | 28mm | 5/8-11 | 8mm / 10mm | 350mm |
| DDCS03032 | 1-1/4" | 32mm | 5/8-11 | 8mm / 10mm | 350mm |
| DDCS03035 | 1-3/8" | 35mm | 5/8-11 | 8mm / 10mm | 350mm |
| DDCS03038 | 1-1/2" | 38mm | 5/8-11 | 8mm / 10mm | 350mm |
| DDCS03045 | 1-3/4" | 45mm | 5/8-11 | 8mm / 10mm | 350mm |
| DDCS03050 | 2" | 50mm | 1/2 gas | 8mm / 10mm | 350mm |
| DDCS03057 | 2-1/4" | 57mm | 1/2 gas | 8mm / 10mm | 350mm |
| DDCS03062 | 2-1/2" | 62mm | 1/2 gas | 8mm / 10mm | 350mm |
| DDCS03075 | 3" | 75mm | 1/2 gas | 8mm / 10mm | 350mm |
| DDCS03088 | 3-1/2" | 88mm | 1/2 gas | 8mm / 10mm | 350mm |
| DDCS03105 | 4" | 105mm | 1/2 gas | 8mm / 10mm | 350mm |
| DDCS03115 | 4-1/2" | 115mm | 1/2 gas | 8mm / 10mm | 350mm |
| DDCS03125 | 5" | 125mm | 1/2 gas | 8mm / 10mm | 350mm |
| DDCS03150 | 6" | 150mm | 1/2 gas | 8mm / 10mm | 350mm |
| DDCS03180 | 7" | 180mm | 1/2 gas | 8mm / 10mm | 350mm |
| DDCS03200 | 8" | 200mm | 1/2 gas | 8mm / 10mm | 350mm |
| DDCS03230 | 9" | 230mm | 1/2 gas | 8mm / 10mm | 350mm |
| DDCS03250 | 10" | 250mm | 1/2 gas | 8mm / 10mm | 350mm |
| DDCS03300 | 12" | 300mm | 1/2 gas | 8mm / 10mm | 350mm |
| DDCS03350 | 14" | 350mm | 1/2 gas | 8mm / 10mm | 350mm |
Note: the diameter, segment height, length can be customized according to the buyers' requirements.
