Diamond Segmented Turbo Saw Blade - DSSB01

I'm Online Chat Now

Diamond Segmented Turbo Saw Blade - DSSB01

China Diamond Segmented Turbo Saw Blade - DSSB01 supplier

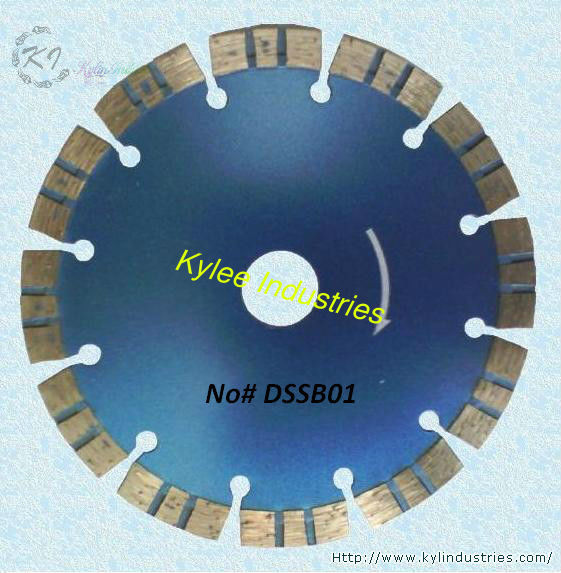

Large Image :  Diamond Segmented Turbo Saw Blade - DSSB01

Product Details:

Place of Origin: China
Brand Name: KI
Certification: ISO9001, MPA
Model Number: DSSB01

Payment & Shipping Terms:

Minimum Order Quantity: 10 ~ 50pieces
Price: Call for price
Packaging Details: Carton or Plastic packaging, OEM accept
Delivery Time: 1 ~ 4 weeks
Payment Terms: WesternUnion, Paypal, TT, L/C
Supply Ability: 3,000pcs per week
Contact Now
Detailed Product Description
Blade Diameter: 4inch ~ 14inch Dimensions: 105mm ~ 350mm
Saw Type: Circular Saw Application: Stone Saw
Power Source: Electricity

Diamond Segmented Turbo Saw Blade - DSSB01


HTS: 8202390000

Core Materials: steel

Category: segmented saw blade

Sintered processing methods: Hot Pressed or Cold Pressed

Features:

1. It can be used for cutting all kinds of stones, ceramic tile, quarry tile, marble and granite, ceramics, concrete, pavement bricks, asphalt, with a widely usage range;

2. It has the advantages such as: sharp cutting, good wear-resistant coefficient; The higher the segment be increased, the longer life & better performance it would be;

3. It can be applied to a variety of angle grinders and marble machines; due to the good core materials, the blade would not be easily deformed during use;

4, diamond particles and metal powders would be sintered on the core materials through hot-pressing / cold-pressing sintering process at once, which would improve the strength of the segments and bring a solid & stable segments,  to avoid some accidental injuries.

For 110mm diamond circular saw blade, our pre-test performance is as follow:
When it is used for dry cutting 15mm granite boards,

Cutting:  the cutting speed can reach 600mm length per 31 seconds;

Life:  The longest cutting length (for Grade A) we can make is over 200m; the cutting length for Grade B is 120m or more;

the cutting length for Grade C is about 80m; and the cutting length for Grade D is 40m to 50m.

It depends on cutomer's specific application & requirements.

Anti-Bending testing, the diamond saw blade (114mm) can withstand over 12kg.



Existed models & specifications for reference:

ITEM NUMBER OUTER DIAMETER(D) BORE HOLE SEGMENT DIMENSION
INCHES METRIC (mm) INCHES METRIC (mm) T X H (mm)
DSSB010105 4" 105 5/8" , 7/8" 16/20/22.23 2.0x7.0/10
DSSB010110 4.3" 110 5/8", 7/8" 16/20/22.23 2.0x7.0/10
DSSB010115 4.5" 115 7/8" 22.23 2.0x7.0/10
DSSB010125 5" 125 7/8" 22.23 2.2x7.0/10
DSSB010150 6" 150 7/8" 22.23 2.2x7.0/10
DSSB010180 7" 180 7/8", 1" 22.23/25.4 2.4x7.0/10
DSSB010230 9" 230 7/8", 1" 22.23/25.4 2.6x7.0/10
DSSB010250 10" 250 7/8", 1", 2" 22.23/25.4/30/50 2.6x8.0/10
DSSB010300 12" 300 7/8", 1", 2" 22.23/25.4/30/50 3.0x8.0/10
DSSB010350 14" 350 7/8", 1", 2" 22.23/25.4/30/50 3.2x8.0/10

Note: the arbor size, segment height, thickness can be customized according to the buyers' requirements.
