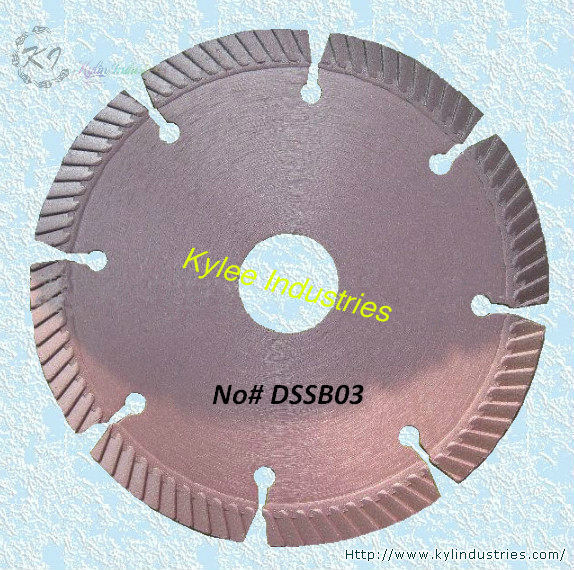

Diamond Segmented Turbo Saw Blades - DSSB03
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Blade Diameter: | 4inch ~ 10inch | Dimensions: | 105mm ~ 250mm |
|---|---|---|---|
| Power Source: | Electricity | Saw Type: | Circular Saw |
| Application: | Stone Saw |
Diamond Segmented Turbo Saw Blades - DSSB03
HTS: 8202390000
Core Materials: steel
Category: segmented saw blade
Sintered processing methods: Hot Pressed or Cold Pressed
Features:
1. It can be used for cutting all kinds of stones, ceramic tile, quarry tile, marble and granite, ceramics, concrete, pavement bricks, asphalt, with a widely usage range;
2. It has the advantages such as: sharp cutting, good wear-resistant coefficient; The higher the segment be increased, the longer life & better performance it would be;
3. It can be applied to a variety of angle grinders and marble machines; due to the good core materials, the blade would not be easily deformed during use;
4, diamond particles and metal powders would be sintered on the core materials through hot-pressing / cold-pressing sintering process at once, which would improve the strength of the segments and bring a solid & stable segments, to avoid some accidental injuries.
For 110mm diamond circular saw blade, our pre-test performance is as follow:
When it is used for dry cutting 15mm granite boards,
Cutting: the cutting speed can reach 600mm length per 31 seconds;
Life: The longest cutting length (for Grade A) we can make is over 200m; the cutting length for Grade
the cutting length for Grade
It depends on cutomer's
Anti-Bending testing, the diamond saw blade (114mm) can withstand over 12kg.
Existed models & specifications for reference:
| ITEM NUMBER | OUTER DIAMETER(D) | BORE HOLE | SEGMENT DIMENSION | ||
| INCHES | METRIC (mm) | INCHES | METRIC (mm) | (T X H) | |
| DSSB030105 | 4" | 105 | 5/8" , 7/8" | 16/20/22.23 | 2.0x7.0/10mm |
| DSSB030110 | 4.3" | 110 | 5/8", 7/8" | 16/20/22.23 | 2.0x7.0/10mm |
| DSSB030115 | 4.5" | 115 | 7/8" | 22.23 | 2.0x7.0/10mm |
| DSSB030125 | 5" | 125 | 7/8" | 22.23 | 2.2x7.0/10mm |
| DSSB030150 | 6" | 150 | 7/8" | 22.23 | 2.2x7.0/10mm |
| DSSB030180 | 7" | 180 | 7/8", 1" | 22.23/25.4 | 2.4x7.0/10mm |
| DSSB030230 | 9" | 230 | 7/8", 1" | 22.23/25.4 | 2.6x7.0/10mm |
| DSSB030250 | 10" | 250 | 7/8", 1", 2" | 22.23/25.4/30/50 | 2.6x8.0/10mm |
Note: the arbor size, segment height, thickness can be customized according to the buyers' requirements.
