Diamond Segmented Saw Blades for Porcelain - DSSB04

I'm Online Chat Now

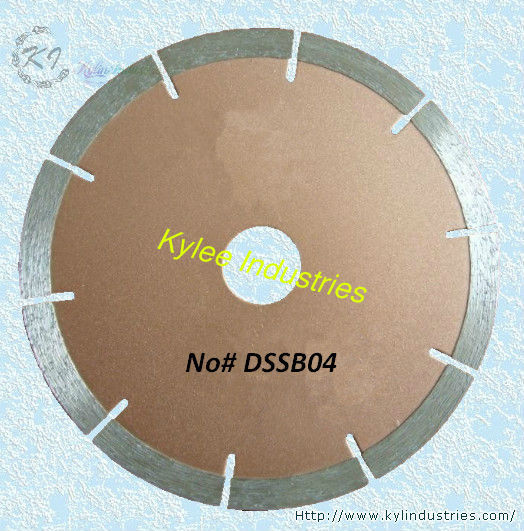

Diamond Segmented Saw Blades for Porcelain - DSSB04

China Diamond Segmented Saw Blades for Porcelain - DSSB04 supplier

Large Image :  Diamond Segmented Saw Blades for Porcelain - DSSB04

Product Details:

Place of Origin: China
Brand Name: KI
Certification: ISO9001, MPA
Model Number: DSSB04

Payment & Shipping Terms:

Minimum Order Quantity: 10 ~ 50pieces
Price: Call for price
Packaging Details: Carton or Plastic packaging, OEM accept
Delivery Time: 1 ~ 4 weeks
Payment Terms: WesternUnion, Paypal, TT, L/C
Supply Ability: 3,000pcs per week
Contact Now
Detailed Product Description
Blade Diameter: 4inch ~ 9inch Dimensions: 105mm ~ 230mm
Power Source: Electricity Saw Type: Circular Saw
Application: Stone Saw

Sintered Diamond Circular Saw Blades - DSSB04


HTS: 8202390000

Core Materials: steel

Category: segmented saw blade

Sintered processing methods: Hot Pressed or Cold Pressed

Features:

1. It can be used for cutting all kinds of stones, ceramic tile, quarry tile, marble and granite, ceramics, concrete, pavement bricks, asphalt, with a widely usage range;

2. It has the advantages such as: sharp cutting, good wear-resistant coefficient; The higher the segment be increased, the longer life & better performance it would be;

3. It can be applied to a variety of angle grinders and marble machines; due to the good core materials, the blade would not be easily deformed during use;

4, diamond particles and metal powders would be sintered on the core materials through hot-pressing / cold-pressing sintering process at once, which would improve the strength of the segments and bring a solid & stable segments,  to avoid some accidental injuries.



Existed models & specifications for reference:

ITEM NUMBER OUTER DIAMETER(D) BORE HOLE

SEGMENT      DIMENSION       (T X H)

INCHES METRIC (mm) INCHES METRIC (mm)
DSSB040105 4" 105 5/8" , 7/8" 16/20/22.23 1.8x7.0/10mm
DSSB040110 4.3" 110 5/8", 7/8" 16/20/22.23 1.9x7.0/10mm
DSSB040115 4.5" 115 7/8" 22.23 1.9x7.0/10mm
DSSB040125 5" 125 7/8" 22.23 1.9x7.0/10mm
DSSB040150 6" 150 7/8" 22.23 1.9x7.0/10mm
DSSB040180 7" 180 7/8", 1" 22.23/25.4 2.2x7.0/10mm
DSSB040230 9" 230 7/8", 1" 22.23/25.4 2.4x7.0/10mm

Note: the arbor size, segment height, thickness can be customized according to the buyers' requirements.
