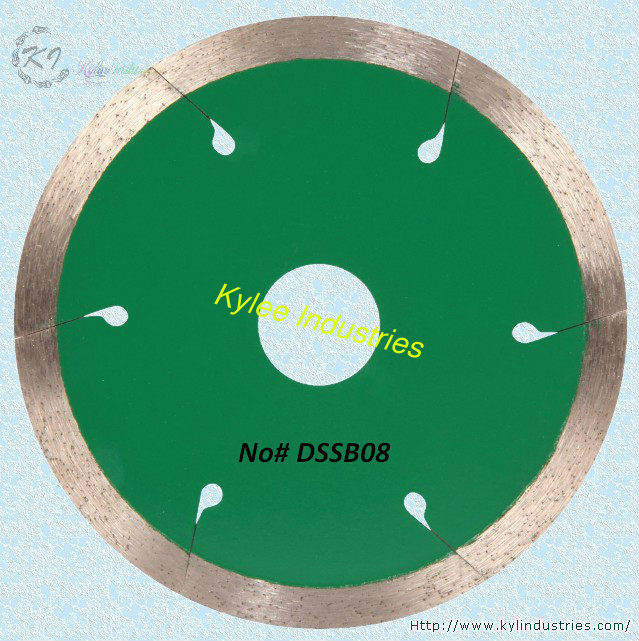

Continuous Rim Diamond Circular Saw Blade - DSSB08
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Blade Diameter: | 4inch ~ 10inch | Dimensions: | 105mm ~ 250mm |
|---|---|---|---|
| Weight: | 0.01kg ~ 1.80kg | Power Source: | Electricity |
| Saw Type: | Circular Saw | Application: | Stone Saw |
Continuous Rim Diamond Circular Saw Blade - DSSB08
HTS: 8202390000
Core Materials: steel
Category: Circular saw blade
Sintered processing methods: Hot Pressed
Features:
1. It can be used for cutting all kinds of stones, ceramic tile, quarry tile, marble and granite, ceramics, concrete, pavement bricks, asphalt, with a widely usage range;
2. It has the advantages such as: sharp cutting, good wear-resistant coefficient; The higher the segment be increased, the longer life & better performance it would be;
3. It can be applied to a variety of angle grinders and marble machines; due to the good core materials, the blade would not be easily deformed during use;
4, diamond particles and metal powders would be sintered on the core materials through hot-pressing / cold-pressing sintering process at once, which would improve the strength of the segments and bring a solid & stable segments, to avoid some accidental injuries.
Existed models & specifications for reference:
| ITEM NUMBER | OUTER DIAMETER(D) | BORE HOLE | SEGMENT DIMENSION (T X H) | ||
| INCHES | METRIC (mm) | INCHES | METRIC (mm) | ||
| DSSB080105 | 4" | 105 | 5/8" , 7/8" | 16/20/22.23 | 1.8x7.0mm |
| DSSB080115 | 4.5" | 115 | 7/8" | 22.23 | 1.9x7.0mm |
| DSSB080125 | 5" | 125 | 7/8" | 22.23 | 1.9x7.0mm |
| DSSB080150 | 6" | 150 | 7/8" | 22.23 | 2.0x7.0mm |
| DSSB080180 | 7" | 180 | 7/8", 1" | 22.23/25.4 | 2.2x7.0mm |
| DSSB080200 | 8" | 200 | 7/8", 1" | 22.23/25.4 | 2.4x7.0mm |
| DSSB080230 | 9" | 230 | 7/8", 1" | 22.23/25.4 | 2.4x7.0mm |
| DSSB080250 | 10" | 250 | 7/8", 1", 2" | 22.23/25.4/30/50 | 3.0x7.0mm |
Note: the arbor size, segment height, thickness can be customized according to the buyers' requirements.
