TCT Circular Saw Blade for Cutting Miscellaneous Wood and Plywood

I'm Online Chat Now

TCT Circular Saw Blade for Cutting Miscellaneous Wood and Plywood

China TCT Circular Saw Blade for Cutting Miscellaneous Wood and Plywood supplier
TCT Circular Saw Blade for Cutting Miscellaneous Wood and Plywood supplier TCT Circular Saw Blade for Cutting Miscellaneous Wood and Plywood supplier

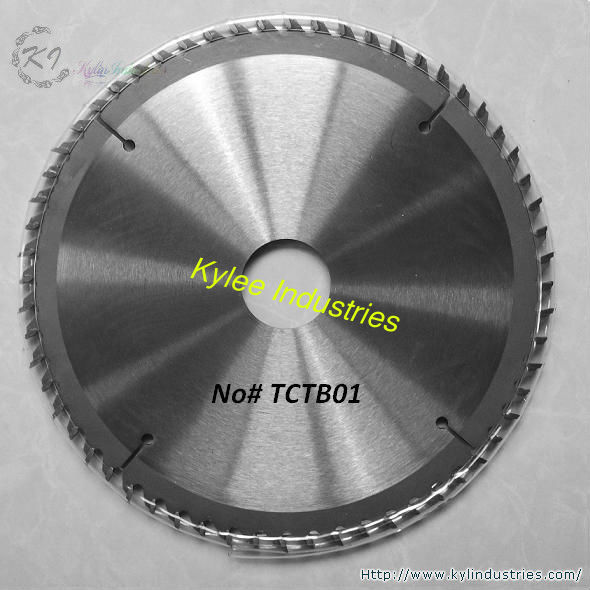

Large Image :  TCT Circular Saw Blade for Cutting Miscellaneous Wood and Plywood

Product Details:

Place of Origin: China
Brand Name: KI
Certification: ISO9001, MPA
Model Number: TCTB01

Payment & Shipping Terms:

Minimum Order Quantity: 5 ~ 10pieces
Price: Call for price
Packaging Details: Carton or Plastic packaging, OEM accept
Delivery Time: 1 ~ 4 weeks
Payment Terms: WesternUnion, Paypal, TT, L/C
Supply Ability: 80,000 teeth per day
Contact Now
Detailed Product Description
Core Materials: 65Mn Kerf: 1.8mm ~ 3.4mm

Tungsten Carbide Tipped Circular Saw Blade

for Cutting Miscellaneous Wood / Timber / Plywood and Particleboard



HTS: 8202390000

Core Material: 65Mn Kerf: 1.8mm ~ 3.4mm Grin: C2 Tooth: ATB

Application: Designed for cutting both dry and soft wood,

and it also can be used to cut shaving board, wood fiber board and joinery panel.

        TCT Circular Saw Blade for Cutting Miscellaneous Wood and Plywood

Typical Specification for Reference:

Model Dia. Specification TIP No. TIP Type
TCTB010110 4" 110*2.0*1.2*20mm 30T, 40T ATB
TCTB010150 6" 150*2.2*1.5*25.4mm 40T, 60T ATB
TCTB010180 7" 180*2.2*1.5*25.4mm 40T, 60T, 80T ATB
TCTB010200 8" 205*2.8*2.0*25.4mm 40T, 60T, 80T ATB
TCTB010230 9" 230*2.8*2.0*25.4mm 40T, 60T, 80T, 100T ATB
TCTB010250 10" 255*3.0*2.0*25.4mm 40T, 60T, 80T, 100T, 120T ATB
TCTB010300 12" 305*3.2*2.2*25.4mm/30mm 40T, 60T, 80T, 100T, 120T ATB
TCTB010350 14" 355*3.2*2.2*25.4mm/30mm 40T, 60T, 80T, 100T, 120T ATB
TCTB010400 16" 405*3.4*2.6*25.4mm/30mm 40T, 60T, 80T, 100T, 120T ATB

Note: other size and specification would be available upon the request.


Technical parameter is as follow:

1. Tips quality & Grade.
    It depends on Cobalt and Nickel alloy composition in segment, as well as the proportion of Carbon.
    We have total 7 different grades, and we will produce it according to application & price.
    There has some differences between Medium-quality saw and Low-quality saw.
2. Physical & Chemical properties of steel Blank.
   Core: 65Mn, High-carbon steel, it meets the international standards.
3. Hook Aangle:
10 ~ 17 degree
4. Hardness: 38 ~ 40
5. Radial Run Out: 0.05mm (We used to adopt automatic welding teeth)
6. Tension: 6.5kg (Medium-quality), 4kg (Low-quality)
7. Smooth: 80 ~ 100
8. Parallel: 0.15mm
