TCT Circular Saw Blade for Cutting Aluminum
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Core Materials:: | 65Mn | Core Thickness:: | 2.2mm ~ 3.8mm |
|---|---|---|---|
| High Light: | tct saw blade,cutting disc,cut aluminum |
||

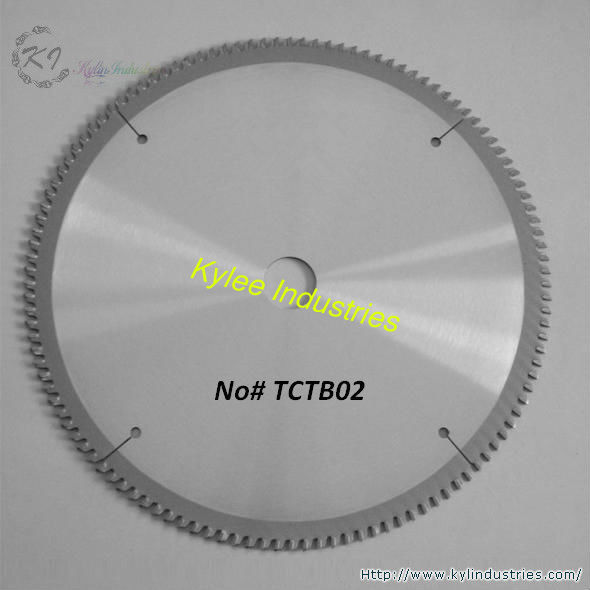

T.C.T Circular Saw Blade for Cutting Aluminum
HTS: 8202390000
Core Material: 65Mn Kerf: 2.2mm~3.4mm Grin: C4 Tooth: TCG
Application: Designed for cutting aluminum panels, aluminum blocks, aluminium alloy profile and others.
Typical Specification for Reference:
| ITEM | OUTER DIAMETER(D) | BORE (mm) | CORE THICKNESS (mm) | TEETH NUMBR | |
| INCHES | METRIC(mm) | ||||
| TCTB020110 | 4 | 110 | 20 | 1.2 | 40T |
| TCTB020160 | 6 | 160 | 20 | 2.0 | 40T |
| TCTB020185 | 7 | 185 | 20 | 2.0 | 40T-60T |
| TCTB020200 | 8 | 200 | 25.4 | 2.2 | 40T-60T |
| TCTB020230 | 9 | 230 | 25.4 | 2.2 | 60T-80T |
| TCTB020250 | 10 | 250 | 25.4 | 2.2 | 80T-120T |
| TCTB020300 | 12 | 300 | 25.4 | 2.4 | 96T-120T |
| TCTB020350 | 14 | 350 | 25.4 / 30 | 2.6 | 96T-120T |
| TCTB020400 | 16 | 400 | 25.4 / 30 | 3.0 | 108T-120T |
| TCTB020450 | 18 | 450 | 25.4 / 30 | 3.4 | 108T-144T |
| TCTB020500 | 20 | 500 | 30 | 3.8 | 108T-144T |
Note: other size and specification would be available upon the request.
TCG Teeth for Cutting Aluminum
Technical parameter is as follow:
1. Tips quality & Grade.
It depends on Cobalt and Nickel alloy composition in segment, as well as the proportion of Carbon.
We have total 7 different grades, and we will produce it according to application & price.
There has some differences between Medium-quality saw and Low-quality saw.
2. Physical & Chemical properties of steel Blank.
Core: 65Mn, High-carbon steel, it meets the international standards.
3. Hook Aangle: 0 ~ -7 degree.
4. Hardness: 38 ~ 40
5. Radial Run Out: 0.05mm (We used to adopt automatic welding teeth)
6. Tension: 6.5kg (Medium-quality), 4kg (Low-quality)
7. Smooth: 80 ~ 100
8. Parallel: 0.15mm
