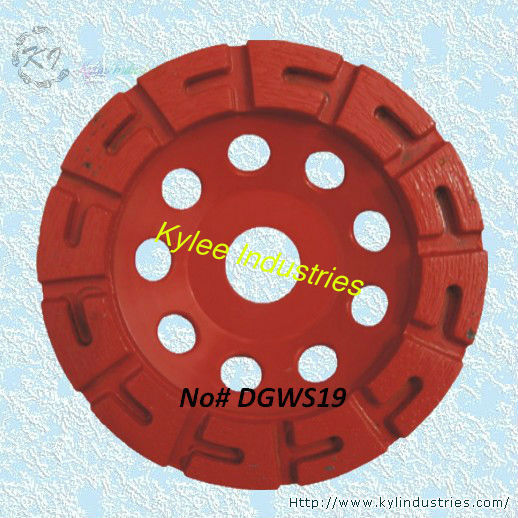

U-shape Segment Diamond Cup Grinding Wheel - DGWS19
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
U-shape Segment Diamond Cup Grinding Wheel - DGWS19
HTS: 6804221000
Core Materials: high quality steel
Processing methods: Sintered / Silver Brazed
Application: Angle Grinder / Electric Grinder and etc
Function: It is designed for grinding and polishing granite,marble,concrete and concrete products, masonry materials and all types of natural stone.
Typical models & specifications for reference:
| ITEM NUMBER | OUTER DIAMETER(D) | BORE HOLE | SEGMENT THICKNESS (mm) | SEGMENT WIDTH (mm) | SEGMENT QTY | |
| INCHES | METRIC(mm) | |||||
| DGWS190100 | 4 | 100 | 7/8" | 5 | 20 | 8 |
| DGWS190115 | 4.5 | 115 | 7/8" | 5 | 20 | 9 |
| DGWS190125 | 5 | 125 | 7/8" | 5 | 20 | 10 |
| DGWS190150 | 6 | 150 | 7/8" | 5 | 20 | 12 |
| DGWS190180 | 7 | 180 | 7/8" | 5 | 20 | 14 |
Note: the arbor size, segment height, thickness can be customized according to the buyers' requirements.
