Blade Diameter: | 4inch ~ 20inch | Dimensions: | 100mm ~ 500mm |
---|---|---|---|
Power Source: | Electricity | Saw Type: | Circular Saw |
Application: | Metal Saw | Core Materials:: | 65Mn |
Core Thickness:: | 1.2mm ~ 3.0mm |
HTS: 8202390000
Core Material: 65Mn Kerf: 1.6mm~3.4mm Grin: C6 Tooth: FTG

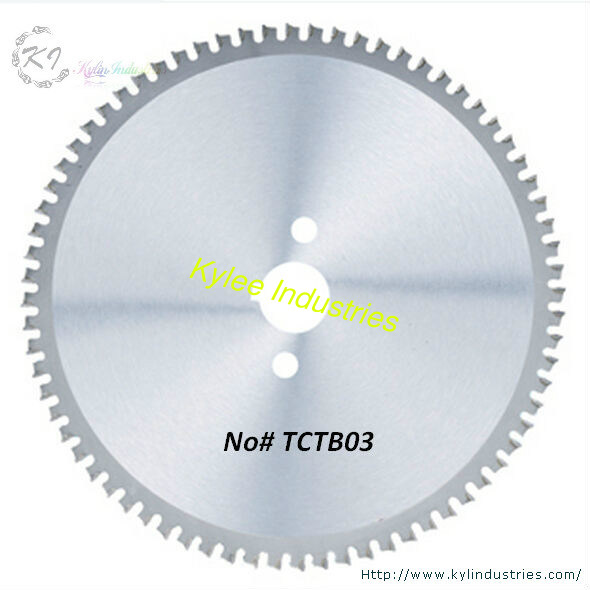

Application: Designed for cutting steel / iron panels, steel / iron tube and SS304 pipes.
Existed Specification for Reference:
ITEM | OUTER DIAMETER(D) | BORE (mm) | CORE THICKNESS (mm) | TEETH NUMBR | |
INCHES | METRIC(mm) | ||||
TCTB030110 | 4 | 110 | 20 | 1.2 |
24T
|
TCTB030125 | 5 | 125 | 20 | 1.2 | 40T |
TCTB030150 | 6 | 150 | 20 | 1.3 |
40T
|
TCTB030180 | 7 | 180 | 25.4 | 1.5 |
40T-60T
|
TCTB030200 | 8 | 200 | 25.4 | 1.6 |
40T-80T
|
TCTB030230 | 9 | 230 | 25.4 | 1.7 |
40T-80T
|
TCTB030250 | 10 | 250 | 25.4 | 1.8 |
40T-100T
|
TCTB030300 | 12 | 300 | 25.4 / 30 | 2.0 |
60T-120T
|
TCTB030350 | 14 | 350 | 25.4 / 30 | 2.2 |
80T-120T
|
TCTB030400 | 16 | 400 | 30 | 2.2 | 100T-120T |
TCTB030450 | 18 | 450 | 30 | 3.0 | 100T-120T |
TCTB030500 | 20 | 500 | 30 | 3.0 | 100T-140T |
Note: Different size and specification would be available upon the request.
1. Tips quality & Grade.
It depends on Cobalt and Nickel alloy composition in segment, as well as the proportion of Carbon.
We have total 7 different grades, and we will produce it according to application & price.
There has some differences between Medium-quality saw and Low-quality saw.
2. Physical & Chemical properties of steel Blank.
Core: 65Mn, High-carbon steel, it meets the international standards.
3. Hook Aangle: 0 ~ -7 degree.
4. Hardness: 38 ~ 40
5. Radial Run Out: 0.05mm (We used to adopt automatic welding teeth)
6. Tension: 6.5kg (Medium-quality), 4kg (Low-quality)
7. Smooth: 80 ~ 100
8. Parallel: 0.15mm
