Product Details:
Payment & Shipping Terms:
|
Application: | Drilling Holes On Concrete And Granite | Max. Drilling Diameter: | 45mm |
---|---|---|---|
Drill Type: | Core Drill |
HTS: 8207501000

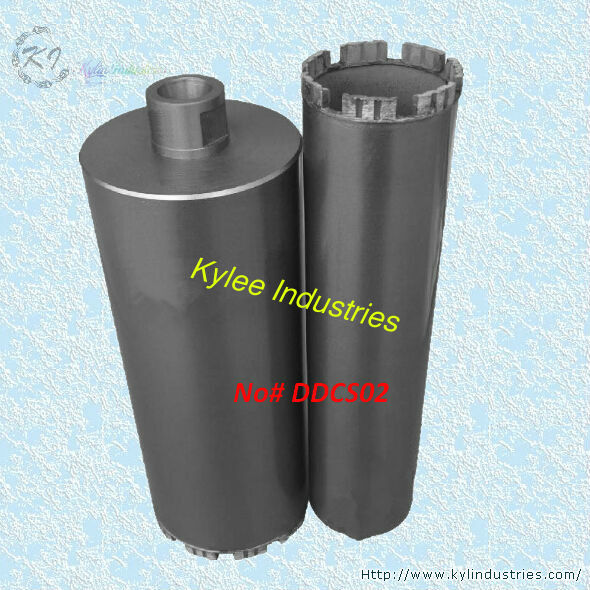

Category: Core Drill Bit
Processing methods: Sintering process
Application: It can be used for drilling holes on masonry, brick, concrete, granite, marble and etc
Features:
1. It can be used for drilling holes on granite and marble and all kinds of stones;
2. It has the advantages such as: sharp drilling, good wear-resistant coefficient;
3. It requires continuous water cooling during the drilling work, to avoid any damage;
4. It can be applied for electric drill and angle grinder, by adopting different connector;
5. The diameter can be customized from 25.4mm to 45mm at cost.
Existed models & specifications for reference:
Item No. | Outer Diameter | Bore Hole | Segment Height | Length | |
DDCS02025 | 1" | 25.4mm | 5/8-11 | 8mm / 10mm | 150mm |
DDCS02028 | 1-1/8" | 28mm | 5/8-11 | 8mm / 10mm | 150mm |
DDCS02032 | 1-1/4" | 32mm | 5/8-11 | 8mm / 10mm | 150mm |
DDCS02035 | 1-3/8" | 35mm | 5/8-11 | 8mm / 10mm | 150mm |
DDCS02038 | 1-1/2" | 38mm | 5/8-11 | 8mm / 10mm | 150mm |
DDCS02045 | 1-3/4" | 45mm | 5/8-11 | 8mm / 10mm | 150mm |
Note: the diameter, segment height, length can be customized according to the buyers' requirements.
