Product Details:
Payment & Shipping Terms:
|
Blade Diameter: | 4inch ~ 10inch | Dimensions: | 105mm ~ 250mm |
---|---|---|---|
Weight: | 0.01kg ~ 1.80kg | Power Source: | Electricity |
Saw Type: | Circular Saw | Application: | Stone Saw |
Core Materials: steel
Category: Circular Saw Blades
Sintered processing methods: Hot Pressed / Cold Pressed
Features:
1. It can be used for cutting all kinds of stones, ceramic tile, quarry tile, marble and granite, ceramics, concrete, pavement bricks, asphalt, with a widely usage range;
2. It has the advantages such as: sharp cutting, good wear-resistant coefficient; The higher the segment be increased, the longer life & better performance it would be;
3. It can be applied to a variety of angle grinders and marble machines; due to the good core materials, the blade would not be easily deformed during use;
4, diamond particles and metal powders would be sintered on the core materials through hot-pressing / cold-pressing sintering process at once, which would improve the strength of the segments and bring a solid & stable segments, to avoid some accidental injuries.

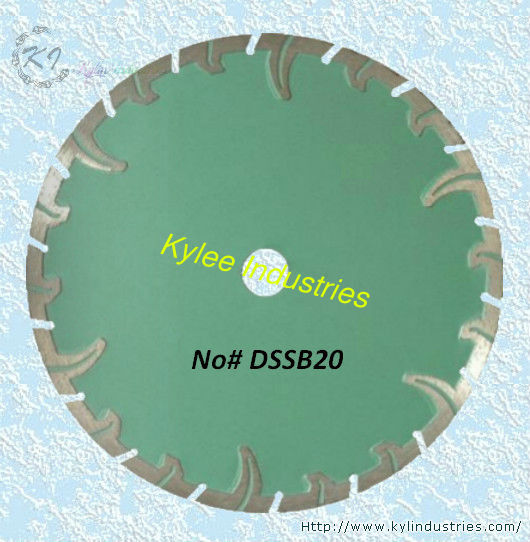

Existed models & specifications for reference:
ITEM NUMBER | OUTER DIAMETER(D) | BORE HOLE | SEGMENT SIZE (T X H) | |
INCHES | METRIC(mm) | INCHES | ||
DSSB200105 | 4" | 105 | 5/8" , 7/8" | 1.8x7.0/10mm |
DSSB200110 | 4.3" | 110 | 5/8", 7/8" | 1.9x7.0/10mm |
DSSB200115 | 4.5" | 115 | 7/8" | 1.9x7.0/10mm |
DSSB200125 | 5" | 125 | 7/8" | 1.9x7.0/10mm |
DSSB200150 | 6" | 150 | 7/8" | 1.9x7.0/10mm |
DSSB200180 | 7" | 180 | 7/8", 1" | 2.2x7.0/10mm |
DSSB200200 | 8" | 200 | 7/8", 1" | 2.4x7.0/10mm |
DSSB200230 | 9" | 230 | 7/8", 1" | 2.4x7.0/10mm |
DSSB200250 | 10" | 250 | 7/8", 1" | 3.0x7.0/10mm |
Note: the arbor size, segment height, thickness can be customized according to the buyers' requirements.
