Silver Brazed Diamond Turbo Saw Blade for Cutting Granite and Marble - DSBB01

I'm Online Chat Now

Silver Brazed Diamond Turbo Saw Blade for Cutting Granite and Marble - DSBB01

China Silver Brazed Diamond Turbo Saw Blade for Cutting Granite and Marble - DSBB01 supplier

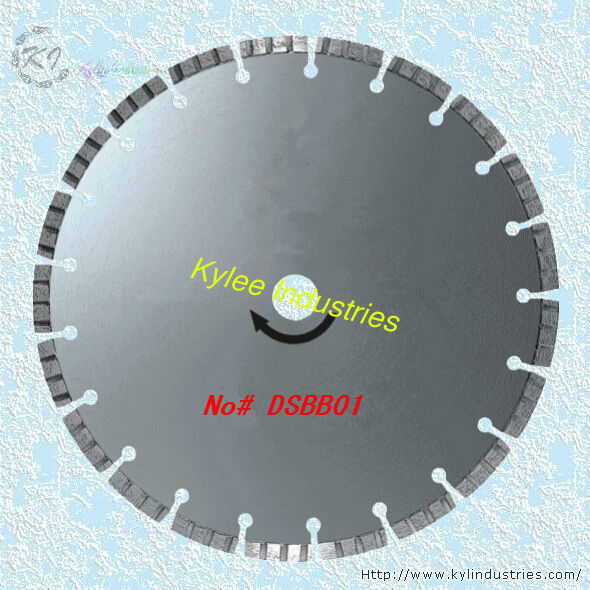

Large Image :  Silver Brazed Diamond Turbo Saw Blade for Cutting Granite and Marble - DSBB01

Product Details:

Place of Origin: China
Brand Name: KI
Certification: ISO9001, MPA
Model Number: DSBB01

Payment & Shipping Terms:

Minimum Order Quantity: 5 ~ 20pieces
Price: Call for price
Packaging Details: Carton or Box packaging, OEM accept
Delivery Time: 1 ~ 4 weeks
Payment Terms: WesternUnion, Paypal, TT, L/C
Supply Ability: 3,000pcs per week
Contact Now
Detailed Product Description
Blade Diameter: 10inch ~ 24inch, Up To 118inch Dimensions: 250mm ~ 600mm, Up To 3000mm
Power Source: Electricity Saw Type: Circular Saw
Application: Stone Saw

Silver Brazed Diamond Turbo Saw Blades

for Cutting Granite, Marble and Concrete - DSBB01


HTS: 8202390000

Core Materials: steel

Category: segmented saw blade

Sintered processing methods: Silver Brazed

Features:

1. It can be used for cutting granite , marble, masonry, concrete, asphalt, and many other materials;

2. It has the advantages such as: sharp cutting, good wear-resistant coefficient;

3. It can be applied to a variety of large cutting machines; due to the good core materials, the blade would not be easily deformed during use;

4, Diamond segments with diamond particles and metal powders would be connected with the core materials through Silver Brazed process, which would improve the strength of the segments and bring a solid & stable segments,  to avoid some accidental injuries.



Typical models & specifications for reference:

ITEM NUMBER OUTER DIAMETER(D) INER DIAMETER(D) SEGMENT HEIGHT (mm)
INCHES METRIC(mm) INCHES METRIC (mm)
DSBB010250 10 250 1/1.2/2 25/30/50 8 / 10 / 12
DSBB010300 12 300 1/1.2/2 25/30/50 8 / 10 / 12
DSBB010350 14 350 1/1.2/2 25/30/50 8 / 10 / 12
DSBB010400 16 400 1/1.2/2 25/30/50 8 / 10 / 12
DSBB010450 18 450 1/1.2/2 25/30/50 8 / 10 / 12
DSBB010500 20 500 1/1.2/2 25/30/50 8 / 10 / 12
DSBB010600 24 600 1/1.2/2 25/30/50 8 / 10 / 12

Note: the arbor size, segment height, thickness can be customized according to the buyers' requirements.

          The max outdiameter can be up to 118inch (3000mm)
