Multi-layer Diamond Sandwich Segments for Cutting Hardstone Limestone Granite Sandstone

I'm Online Chat Now

Multi-layer Diamond Sandwich Segments for Cutting Hardstone Limestone Granite Sandstone

China Multi-layer Diamond Sandwich Segments for Cutting Hardstone Limestone Granite Sandstone supplier
Multi-layer Diamond Sandwich Segments for Cutting Hardstone Limestone Granite Sandstone supplier Multi-layer Diamond Sandwich Segments for Cutting Hardstone Limestone Granite Sandstone supplier

Large Image :  Multi-layer Diamond Sandwich Segments for Cutting Hardstone Limestone Granite Sandstone

Product Details:

Place of Origin: China
Brand Name: KI
Model Number: DYDS02

Payment & Shipping Terms:

Minimum Order Quantity: 1 ~ 2sets
Price: Call for price
Packaging Details: carton
Delivery Time: 1 week
Payment Terms: TT, Paypal, L/C, WesterUnion
Supply Ability: 200000 sets per year
Contact Now
Detailed Product Description
Type: Power Tool Parts

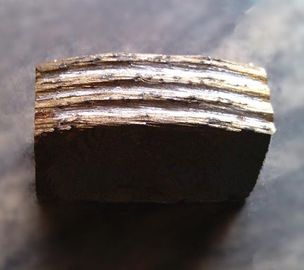

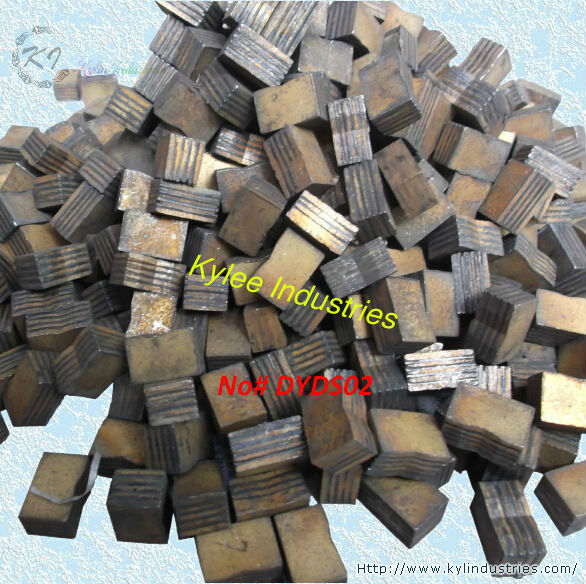

Multi-layer Diamond Sandwich Segments for Cutting Hardstone



HTS: 82079010000

* Diamond Segment is the important part of diamond cutting / grinding / drilling tools, we can provide diamond segments for cutting / grinding / drilling granite, marble, sandstone, limestone, and other stones; it can be also applied for cutting ceramic, cement, concrete, asphalt, etc.

We can supply a complete range of diamond segments, such as 250-3500mm stone cutting segments, concrete cutting segments, asphalt cutting segments, marble gang saw segments, Multi-blades segments, drill segments, diamond profile segments, and etc.

Our diamond segments are working very well specially for limestone, granite & marble, the diamond saw segment's dimension is available according to customer's requirements. we aim to improve the diamond segments cutting efficiency meanwhile save the cost.

* The elements of our segments are: Cobalt, iron, nickel, copper, tin and diamond. The proportion of those elements can be adjusted to change the cutting speed and lifespan, to cater for the needs of the different customers;

We can produces one-layer structure segments, multi-layer structure segments, which depends on customer's requirements.



The reference specification is as follow:

ITEM NUMBER OUTER DIAMETER NUMBER SEGMENT HEIGHT SEGMENT THICKNESS SEGMENT LENGTH
DYDS010300  300 (12")  21 8/10/12  2.8 / 3.0 40
DYDS010350 350 (14")  24 8/10/12  3.0 / 3.2 40
DYDS010400 400 (16") 28 8/10/12  3.2 / 3.4 40
DYDS010450 450 (18") 32 8/10/12 3.4 / 3.6 40
DYDS010500 500 (20") 36 8/10/12 3.6 / 4.0 40
DYDS010600 600 (24") 42 8/10/12 4.5 / 4.0 40
DYDS010700 700 (28")  50 8/10/12 4.5 / 4.8 40
DYDS010750 750 (30") 52 8/10/12 4.5 / 5.0 40
DYDS010800 800 (32") 56 8/10/12 5.0 / 5.5 40
DYDS010900 900 (36")  64 8/10/12 5.5 / 6.0 40
DYDS011000 1000 (40") 70 10/12 7.0 / 6.5 24
DYDS011200 1200 (48") 80 10/12 7.0 / 6.5 24
DYDS011600 1600 (62") 108 10/12 7.5 / 8.5 24
DYDS011800 1800 (70") 120 10/12 9.0 / 10 24
DYDS012000 2000 (78") 128 12/15 10 / 11 24
DYDS012200 2200 (86") 132 12/15 10 / 11 24
DYDS012500 2500 (98") 140 12/15 10.5 / 11.5 24
DYDS012700 2700 (106")  150 15/20 11.5 / 12.5 24
DYDS013000 3000 (118") 160 15/20 11.5 / 12.5 24

Note: Segments Size, Cutting Speed & Lifespan can be customized according to buyers' requirements.



Special Note: Since each user has a different stone to be cut, and they also have different requirements on cutting speed and cutting lifespan, we're not sure that such diamond segments can be fully applicable to every customer. Therefore, it's better to take a sample trial of 1~4 times and 1~2 sets per time, and we would adjust the segments formula according to each trial feedback. Furthermore, for sample trial, we would charge 100% cost for the first trial, 80% cost for the second trial, 50% cost for the third trial, free for the fourth trial (only charge shipping cost).
