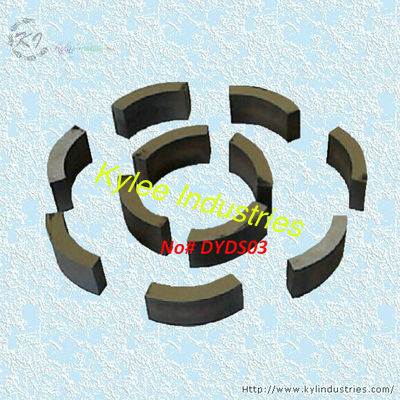

Diamond Segments for Core Drill Bits
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Type: | Construction Tool Parts |
|---|
Diamond Segments for Core Drill Bits
HTS: 82079010000
* Diamond Segment is the important part of diamond drilling tools, we can provide diamond segments for drilling concrete, engineering bricks, granite, marble, and other stones;
* Our diamond segments are working very well specially for concrete, granite & marble, the diamond segment's dimension is available according to customer's requirements;
* The elements of our segments are: Cobalt, iron, nickel, copper, tin and diamond. The proportion of those elements can be adjusted to change the cutting speed and lifespan, to cater for the needs of the different customers;
The reference specification is as follow:
| ITEM NUMBER | OUTER DIAMETER | NUMBER | SEGMENT LENGTH | SEGMENT WIDTH | SEGMENT HEIGHT |
|---|---|---|---|---|---|
| DSDS03025 | 25 (1") | 3 | 17mm | 3.0mm | 7mm |
| DSDS03032 | 32 (1-1/4") | 3 | 17mm | 3.0mm | 7mm |
| DSDS03038 | 38 (1-1/2") | 4 | 17mm | 3.0mm | 7mm |
| DSDS03050 | 50 (2") | 5 | 24mm | 3.5mm | 7mm |
| DSDS03063 | 63 (2-1/2") | 6 | 24mm | 3.5mm | 7mm |
| DSDS03075 | 75 (3") | 7 | 24mm | 3.5mm | 7mm |
| DSDS03089 | 89 (3-1/2") | 8 | 24mm | 3.5mm | 7mm |
| DSDS03100 | 100 (4") | 9 | 24mm | 4.0mm | 7mm |
| DSDS03115 | 115 (4-1/2") | 10 | 24mm | 4.0mm | 7mm |
| DSDS03125 | 125 (5") | 10 | 24mm | 4.0mm | 7mm |
| DSDS03150 | 150 (6") | 12 | 24mm | 4.0mm | 7mm |
| DSDS03180 | 180 (7") | 14 | 24mm | 4.0mm | 7mm |
| DSDS03200 | 200 (8") | 16 | 24mm | 4.5mm | 7mm |
| DSDS03230 | 230 (9") | 18 | 24mm | 4.5mm | 7mm |
| DSDS03250 | 250 (10") | 20 | 24mm | 4.5mm | 7mm |
| DSDS03300 | 300 (12") | 22 | 24mm | 5.0mm | 7mm |
| DSDS03350 | 350 (14") | 24 | 24mm | 5.0mm | 7mm |
Note: Other Segments Size can be customized according to buyers' requirements.
