Resin Bond CBN Grinding Wheels - CBGW08
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Bond: | Resin | Type: | Parallel Grinding Wheels With Arc |
|---|

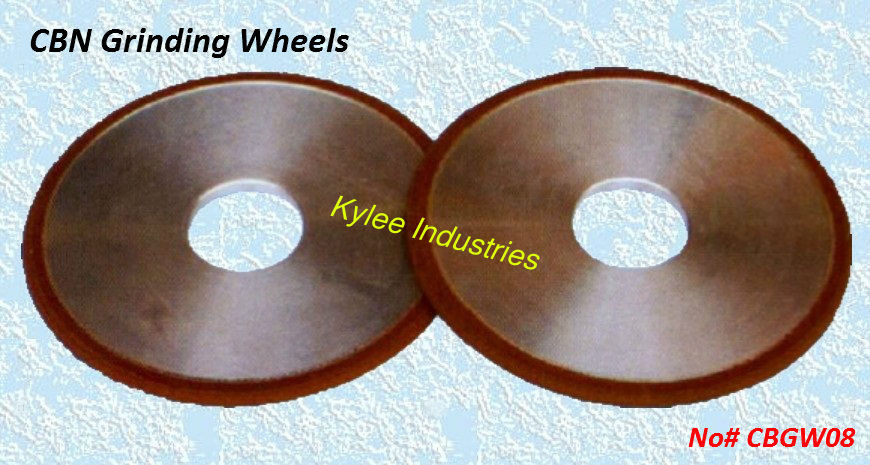

Resin Bond CBN Grinding Wheel - CBGW08
HTS: 6804221000
Grinding Materials: Cubic Boron Nitride
Core Materials: Aluminium
Application: Electric Grinder and etc
Function: It is designed for fine-grinding the slots and molded arcs on all kinds of tools.
Typical models & specifications for reference:
| ITEM NUMBER | OUTER DIAMETER (D) | HOLE DIAMETER (H) | THICKNESS (T) | ARC(R) | WIDTH (W) |
| CBGW080060 | 60mm | 10mm | 4mm | 2 | 6mm |
| CBGW080080 | 80mm | 10 / 20mm | 6mm | 3 | 6mm |
| CBGW080100 | 100mm | 20mm | 6 / 8mm | 3 / 4 | 6mm |
| CBGW080150 | 150mm | 32mm | 6 / 8mm | 3 / 4 | 8mm |
Note: the arbor size, thickness and width can be customized according to the buyers' requirements.
