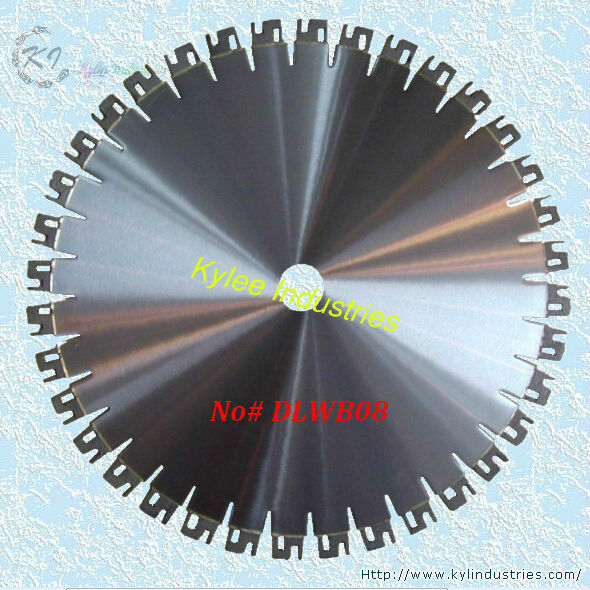

Laser Welded Diamond Saw Blade for Cutting Reinforced Concrete - DLWB08
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Blade Diameter: | 12inch ~ 24inch | Dimensions: | 300mm ~ 600mm |
|---|---|---|---|
| Power Source: | Electricity | Saw Type: | Circular Saw |
| Application: | Stone Saw |
Laser Welded Diamond Saw Blade
for Cutting Concrete and Reinforced Concrete - DLWB08
HTS: 8202390000
Core Materials: steel
Category: segmented saw blade
Sintered processing methods: Laser Welded
Features:
1. It can be used for cutting concrete and reinforced concrete;
2. It has the advantages such as: sharp cutting, good wear-resistant coefficient;
3. It can be applied to a variety of large cutting machines; due to the good core materials (65Mn steel), the blade would not be easily deformed during use;
4, Diamond segments with diamond particles and metal powders would be connected with the core materials through Laser Welded process, which would improve the strength of the segments and bring a solid & stable segments, to avoid some accidental injuries.
Typical models & specifications for reference:
| Item No# | Diameter | Bore Hole (mm) | Segments' Qty | Segments Size (mm) | |||
| Inch | mm | Length | Width | Height | |||
| DLWB080300 | 12 | 300 | 25.4 / 50 | 20 / 21 | 40 | 3.0 | 8 / 10 / 12 |
| DLWB080350 | 14 | 350 | 25.4 / 50 | 24 | 40 | 3.2 | 8 / 10 / 12 |
| DLWB080400 | 16 | 400 | 25.4 / 50 | 28 | 40 | 3.4 | 8 / 10 / 12 |
| DLWB080450 | 18 | 450 | 25.4 / 50 | 32 | 40 | 3.6 | 8 / 10 / 12 |
| DLWB080500 | 20 | 500 | 25.4 / 50 | 36 | 40 | 3.6 | 8 / 10 / 12 |
| DLWB080550 | 22 | 550 | 25.4 / 50 | 38 | 40 | 4.0 | 8 / 10 / 12 |
| DLWB080600 | 24 | 600 | 25.4 / 50 | 42 | 40 | 4.2 | 8 / 10 / 12 |
Note: the arbor size, segment height, thickness can be customized according to the buyers' requirements.
