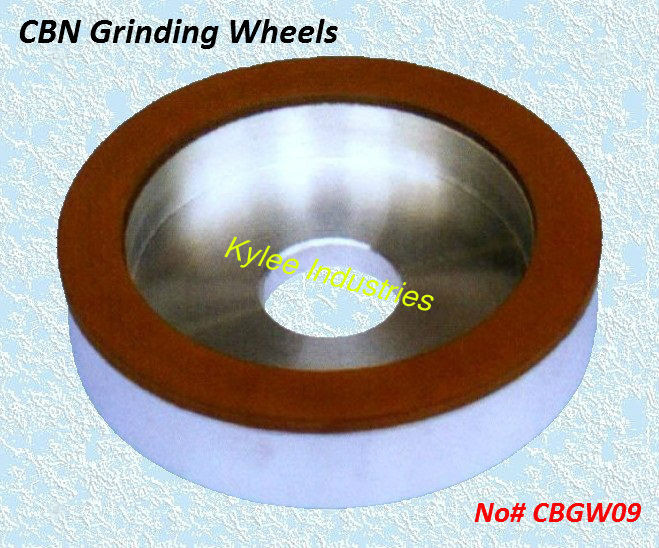

Resin Bond CBN Grinding Wheels - CBGW09
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Bond: | Resin | Type: | Cup Grinding Wheels |
|---|
Resin Bond CBN Grinding Wheel - CBGW09
HTS: 6804221000
Grinding Materials: Cubic Boron Nitride
Core Materials: Aluminium
Application: Electric Grinder and etc
Function: It is designed for sharpening & fine-grinding carbide saw blades, drill core bits and other tools. It can be also used for processing glass, quartz, ceramics, semiconductors and non-metallic materials.
Typical models & specifications for reference:
| ITEM NUMBER | OUTER DIAMETER (D) | HOLE DIAMETER (H) | HEIGHT (G) | THICKNESS (T) | WIDTH (W) |
| CBGW090100 | 100mm | 20mm | 22mm | 3mm | 2 / 5 / 10 / 15mm |
| CBGW090125 | 125mm | 32mm | 22mm | 3mm | 2 / 5 / 10 / 15mm |
| CBGW090150 | 150mm | 32mm | 24mm | 3mm | 2 / 5 / 10 / 15mm |
| CBGW090200 | 200mm | 51mm | 29mm | 3mm | 2 / 5 / 10 / 15mm |
Note: the arbor size, height, thickness and width can be customized according to the buyers' requirements.
