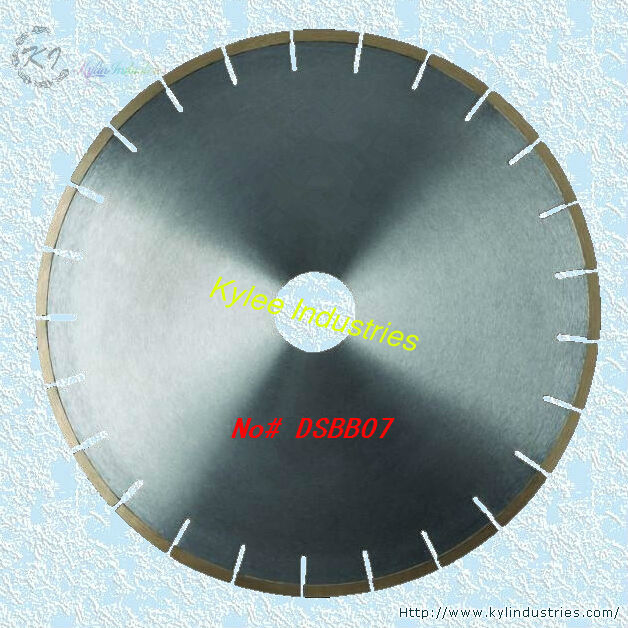

Silver Brazed Diamond Saw Blade for Cutting Quartz and Microcrystalline Stone - DSBB07
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
Silver Brazed Diamond Saw Blade
for Cutting Quartz and Microcrystalline Stone - DSBB07
HTS: 8202390000
Core Materials: steel
Category: segmented saw blade
Sintered processing methods: Silver Brazed
Features:
1. It can be used for cutting Quartz, Microcrystalline and Marble stones;
2. It adopts unique narrow slot design, which can be applied for cutting brittle nonmetallic materials;
3. Advantage: sharp cutting, no chipping and longer lifespan.
Typical models & specifications for reference:
| Item No# | Outer Diameter | Bore Diameter (mm) | Sepcification of Segments |
Segment Quantity |
|||
| Inch | mm | Length | Width | Height | |||
| DSBB070300 | 12 | 300 | 25.4 / 50 | 40 | 3.0 | 8 / 10 | 20 |
| DSBB070350 | 14 | 350 | 25.4 / 50 | 40 | 3.2 / 3.4 | 8 / 10 | 24 / 27 |
| DSBB070400 | 16 | 400 | 25.4 / 50 | 40 | 3.4 / 3.6 | 8 / 10 | 28 / 31 |
| DSBB070450 | 18 | 450 | 25.4 / 50 | 40 | 3.8 | 8 / 10 | 32 |
| DSBB070500 | 20 | 500 | 25.4 / 50 | 40 | 4.0 | 8 / 10 | 35 |
| DSBB070600 | 24 | 600 | 25.4 / 50 | 40 | 4.8 | 8 / 10 | 42 |
Note: the bore size, segment size, thickness can be customized according to the buyers' requirements.
